Steam-Baked Kibbles Production Line
Fresh steamed pet food is a premium solution combining extrusion forming, low-temperature steam cooking, and hot air drying. Compared with traditional extrusion, the gentle cooking process helps reduce heat damage to heat-sensitive nutrients while preserving more natural flavor and nutritional value.
Designed for high-end dog and cat food manufacturers, this production line supports chicken, beef, fish, and other high-meat formulas. The finished food features a porous, crispy texture for easy digestion and absorption. Grain-free formulas can use peas, lentils, potatoes, and cassava as carbohydrate sources, while high fresh-meat content provides abundant animal protein with lower carbohydrates. Probiotics, chelated minerals, chicken fat, hydrolyzed chicken powder, and brewer’s yeast can further support palatability, digestion, and nutrient absorption.
Fresh Steamed Kibble Production Line
See how our Fresh Steamed Pet Food Production Line turns high-meat formulas into premium pet food with a gentle, controlled process. Combining extrusion forming, low-temperature steam cooking, and hot air drying, the line helps preserve nutrients, natural flavor, and palatability while ensuring stable shaping and consistent quality. Designed for chicken, beef, fish, and other high-protein formulas, it supports grain-free, high-fresh-meat pet food production with a porous, crispy texture that is easy to digest. From processing to drying, every step is designed for efficient, flexible, and reliable production.

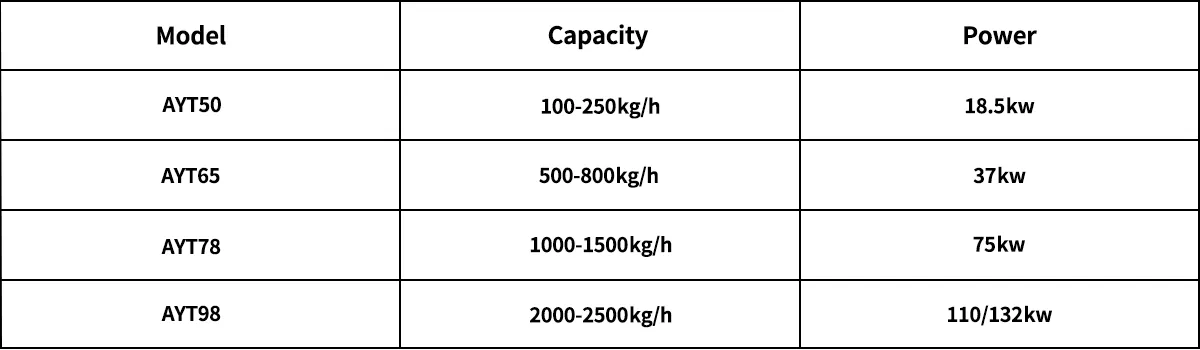

Equipment Specifications

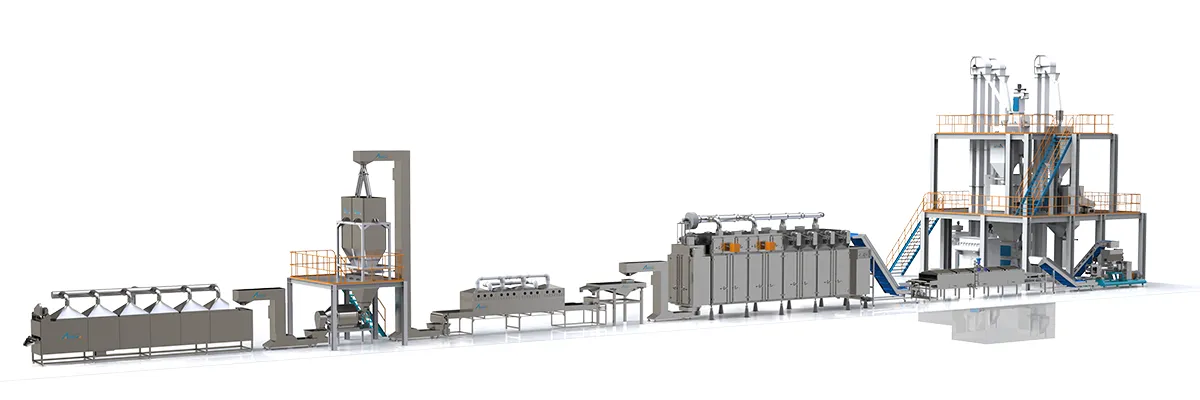

Introduction to the Process Flow
1.Mixing: Thoroughly blend the various powdered ingredients.
2.Extrusion: Utilizes a twin-screw extruder designed for small-to-medium production volumes and compliant with food equipment standards. It features multiple liquid injection points and offers high formulation versatility, enabling the production of a wide range of pet foods. The system includes an HMI interface and independent temperature control for each barrel section, ensuring precise processing.
3.Steaming Line: Receives the product and uses steam to raise the temperature, effectively cooking and gelatinizing the ingredients.
4.Drying: Uses a dryer to remove the vast majority of moisture from the freshly steamed product, thereby extending shelf life.
5.Coating: An optional vacuum coating system allows for the infusion of fats, flavorings, and other additives at rates of up to 35%, enhancing both palatability and nutritional value.
6.Packaging: Customized according to specific requirements.
What can a steam-baked kibbles production line do?
Our Fresh Steamed Pet Food Production Line is designed for high-quality dog and cat food production, combining extrusion forming, low-temperature steam cooking, and hot air drying. The gentle process helps retain nutrients, fresh meat flavor, and palatability while delivering stable shapes and consistent quality. Suitable for chicken, beef, fish, and grain-free formulas, the line provides an efficient solution for producing premium fresh steamed pet food at commercial scale.
