Pet Pillow Treats Production Line
The Pet Pillow Treats Production Line from Shandong Arrow is designed to produce regular extruded pet food, filled pillow treats, and other innovative pet food products on one flexible production line. With a high length-to-diameter ratio, high starch gelatinization, online filling, and specialized shaping technology, it helps manufacturers develop differentiated products with attractive filled structures.
The PLC control system enables real-time parameter monitoring and quick changes between recipes and molds, supporting flexible production. HACCP-oriented equipment design and traceable processing help maintain hygienic production, while automated operation reduces labor costs and improves efficiency.
Core Filled Pet Food Production Line
Producing premium filled pet treats requires accurate filling, consistent shapes, and efficient production. Our Core Filled Pet Treat Production Line integrates mixing, extrusion, center filling, shaping, and forming into a complete solution.
The line supports filled dog treats, cat snacks, functional treats, and customized pet food products. With precise center filling, automatic forming, PLC intelligent control, and flexible product customization, it helps manufacturers achieve stable quality and efficient commercial production.

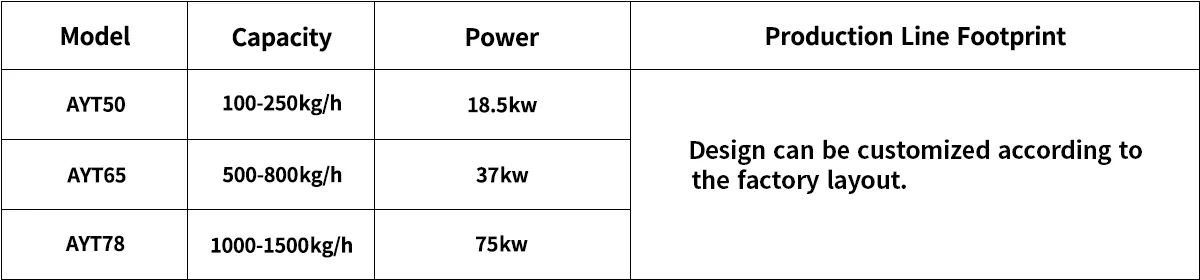

Equipment Specifications

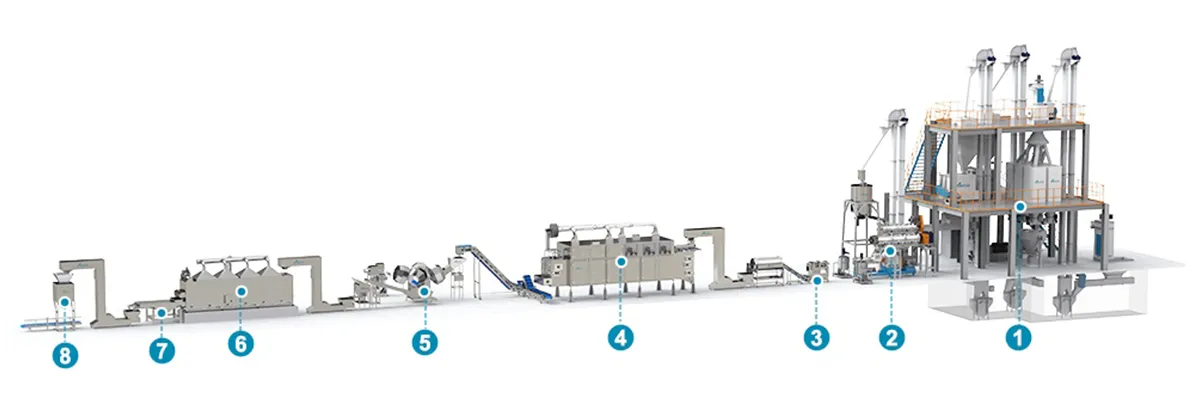

Introduction to the Process Flow
1. Raw Material Intake & Batching: Ingredients are mixed uniformly according to the formula; the process supports fully automated PLC control.
2. Extrusion & Core-Filling: Features a high-L/D (length-to-diameter) ratio twin-screw extruder designed specifically for processing high-fresh-meat and high-protein pet food. Optimized screw configurations and extrusion parameters effectively enhance palatability and texture, ensure consistent product quality, and meet the demands of large-scale premium pet food production.Core-Filling Unit: The filling tank utilizes a jacketed water-bath heating structure and is equipped with a top-mounted mechanical agitator; the entire unit adheres to sanitary design standards. The agitation system operates without dead zones, ensuring uniform mixing. Removable spray balls inside the tank significantly simplify cleaning and meet food-grade hygiene requirements.
3. Shaping & Cutting: Capable of processing multiple product strands simultaneously, increasing production capacity by 4–6 times. Product dimensions are customizable, and the unit features an easy-to-clean, food-grade PU conveyor belt.
4. Drying: Features a servo-driven material distribution system for uniform spreading and stable operation. Includes a residue removal system to address cleaning challenges and safety hazards. Offers flexible heating options—steam, gas, or electric—to suit various production conditions.
5. Coating: A coating system comprising a drum, coating tank, metering device, and rotor pump ensures uniform application, enhancing product flavor and quality.
6. Cooling: A belt cooler reduces the product temperature to levels suitable for storage or packaging.
7. Screening: Removes fines and debris to ensure the product meets packaging standards.
8. Packaging: Customizable upon request.
What can a wet pet food production line do?
This production line for filled pet food supports the manufacture of various pet food products, including standard extruded kibble and filled varieties; it enables multi-purpose use on a single line, flexibly meeting the development needs for diverse product categories.
