Floating Fish Feed Production Line

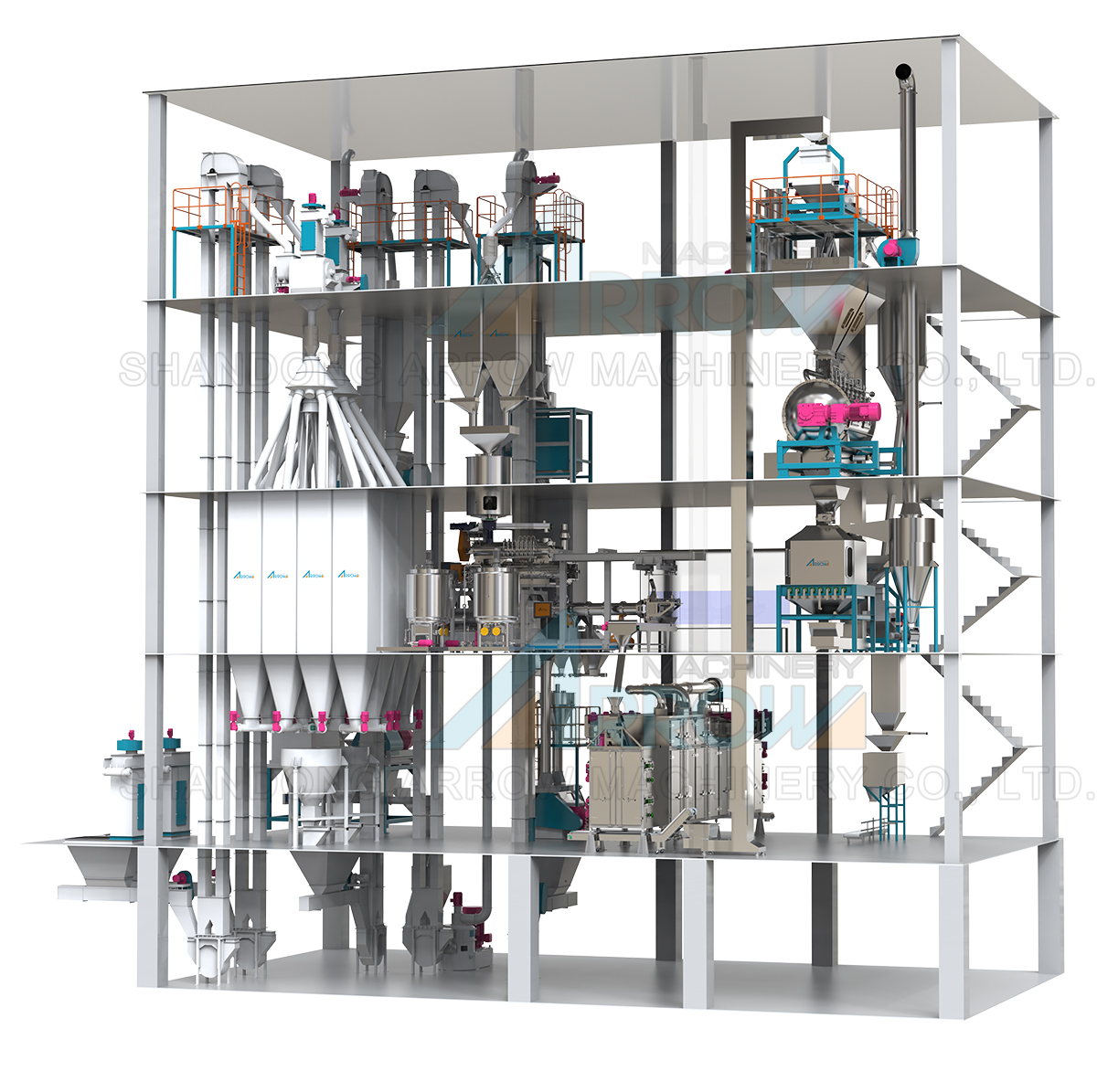

Shandong Arrow Floating Aquatic Feed Production Line is designed for efficient, stable production of high-quality floating fish feed. The complete line integrates raw material storage, crushing, mixing, twin-screw extrusion, drying, cooling, spraying and other core processes into one streamlined production system.Using advanced extrusion technology, the line enables precise control of feed expansion, density, pellet size and shape, helping manufacturers achieve stable floating performance and consistent product quality. Production capacity can be flexibly configured according to factory requirements, while process parameters can be adjusted for different formulations and feed specifications.
Floating Fish Feed Production Line | Stable Extrusion & Efficient Production
Shandong Arrow Floating Fish Feed Production Line integrates mixing, twin-screw extrusion, drying, cooling and spraying for efficient production of stable floating fish feed. The line supports flexible capacity and customized pellet sizes for different fish feed formulations and aquaculture needs.

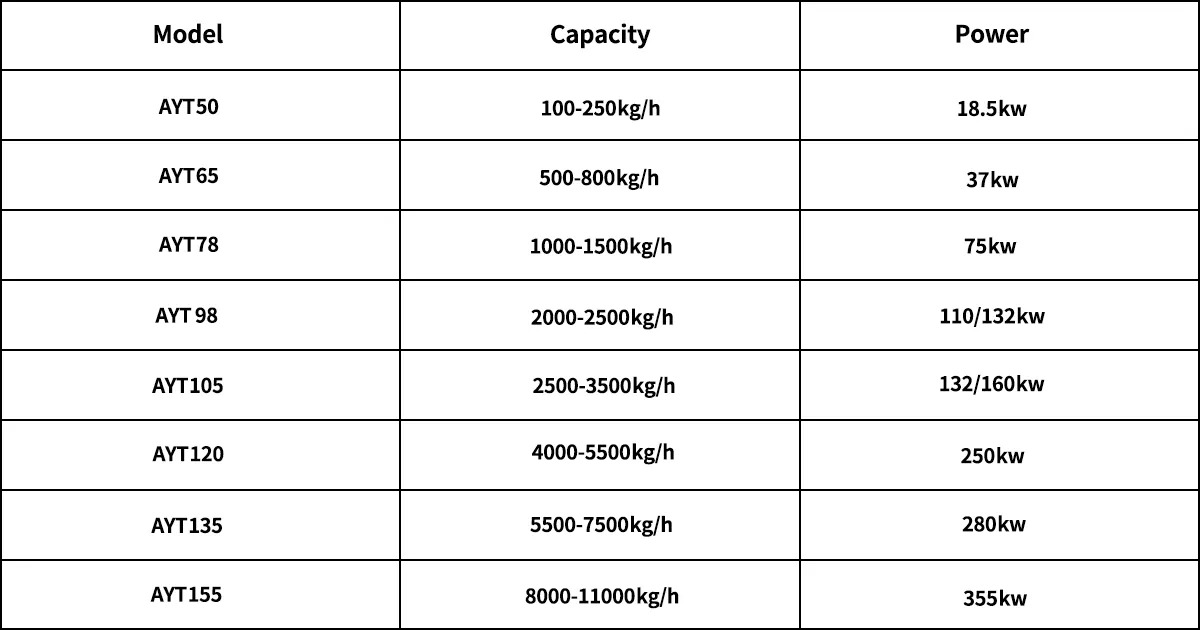

Equipment Specifications

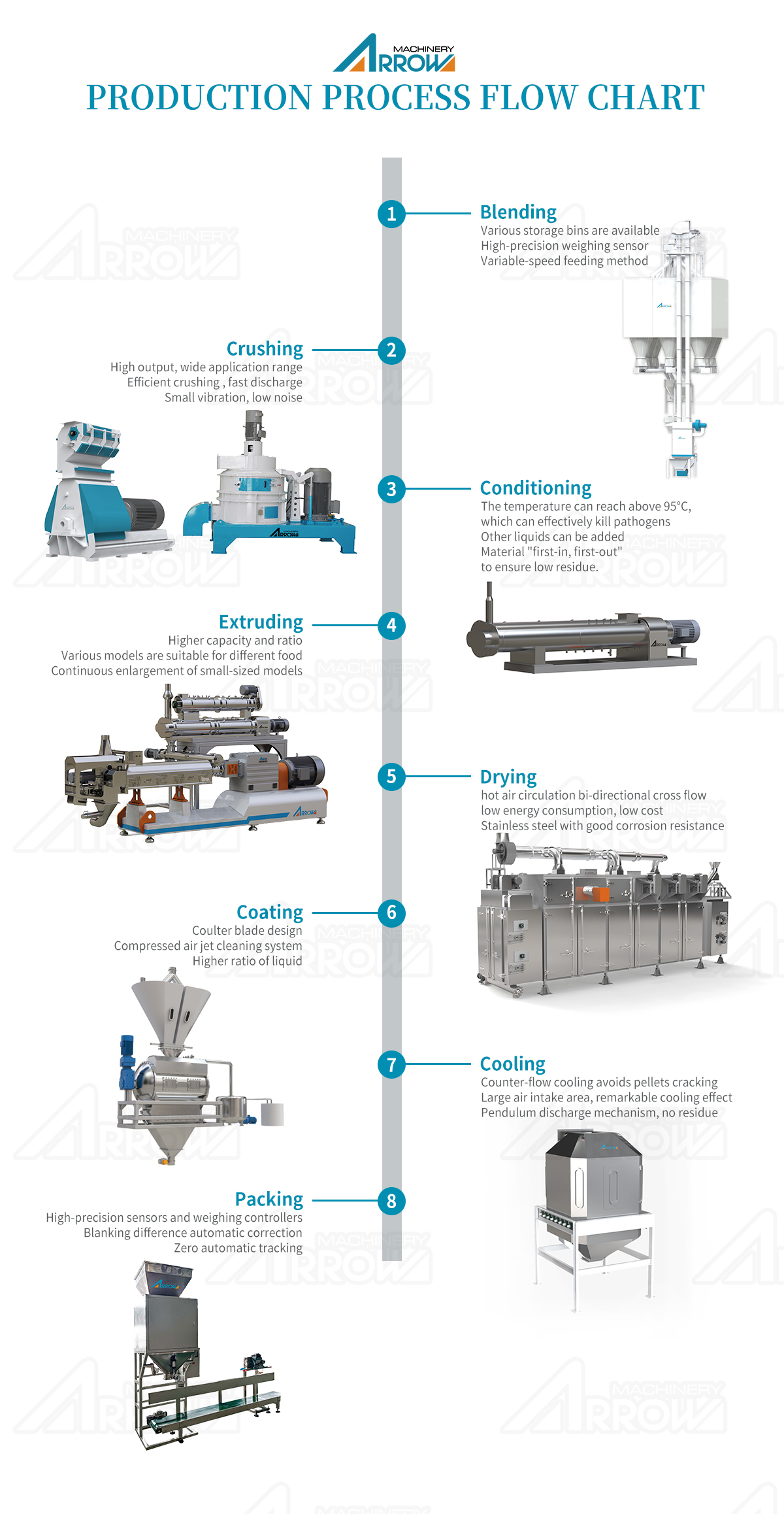

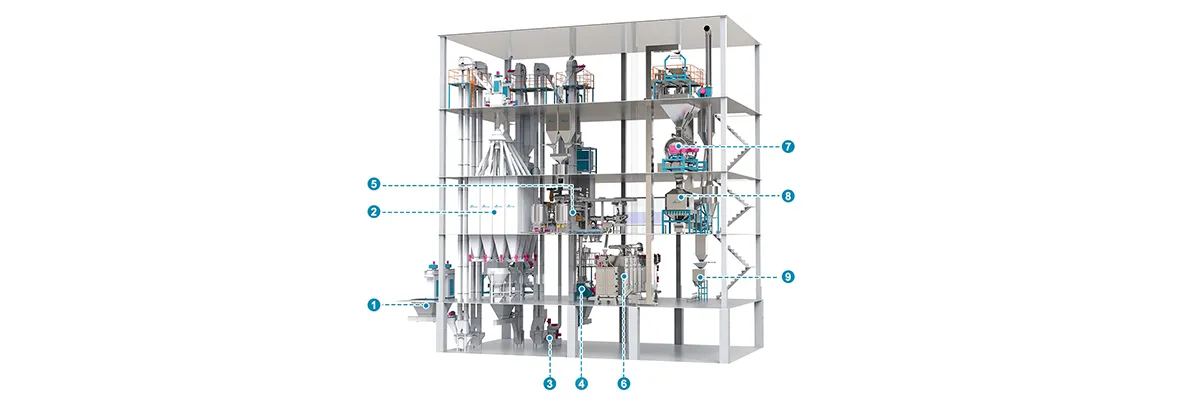

Introduction to the Process Flow
1. Raw Material Intake System: Customizable to requirements; supports delivery via truck, unloading from bulk bags, or manual feeding.
2. Batching System: Customizable based on raw material characteristics and formula requirements; features precise PLC control, eliminating the need for manual on-site operation.
3. Mixing System: Designed for dry materials; ensures high uniformity (variation <5%) and excellent sealing to prevent leakage. Features a large bottom-opening discharge gate for rapid, residue-free unloading.
4. Pulverizing System: Utilizes an ultra-fine pulverizer suitable for processing shrimp feed, small-particle extruded feed, various aquatic feeds, and pet food ingredients. Employs an innovative screenless design with air classification and a unique grinding disc configuration to achieve high output and efficiency. Produces uniform, stable particle sizes while maintaining low material temperatures during processing, effectively preserving raw material quality.
5. Extrusion System: A twin-screw extruder that uses screw rotation and compression to subject raw materials to shearing, mixing, and cooking under high-temperature, high-pressure conditions. Precision shaping via specialized dies allows for controlled product specifications and forms. Equipped with a high-speed, high-torque gearbox, the system offers high load-bearing capacity, low noise, and superior processing efficiency, meeting the demands of large-scale feed production.
6. Drying System: Features a high-efficiency circulating dryer utilizing advanced bidirectional cross-flow hot air technology to effectively handle the drying and curing of extruded products. An internal hot-air circulation system ensures low energy consumption and reduced production costs. Flexible heating options—including steam, gas, and electric—accommodate various production requirements.
7. Coating System: Optional vacuum coating system available; allows for the incorporation of higher levels of fats and flavorings (up to 35% coating ratio), enhancing product palatability and nutritional value.
8. Cooling System: Cools material to near-ambient temperatures, effectively extending product shelf life.
9. Packaging System: Customizable to requirements.

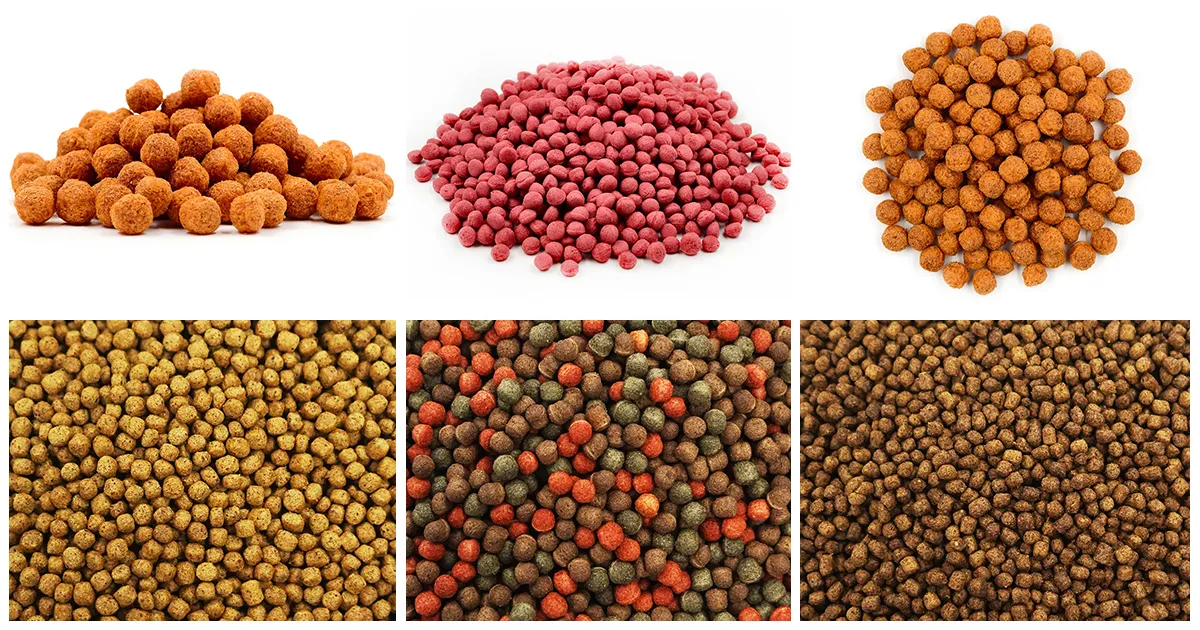

What can a floating fish feed production line do?
Shandong Arrow Floating Fish Feed Production Line is designed to produce floating feed pellets for various aquaculture species. It can process different formulations for freshwater and marine fish, including tilapia, catfish, carp, trout and other farmed fish. By adjusting the extrusion process, pellet size, density and formula, the line can meet different feeding requirements and support efficient, standardized fish feed production.

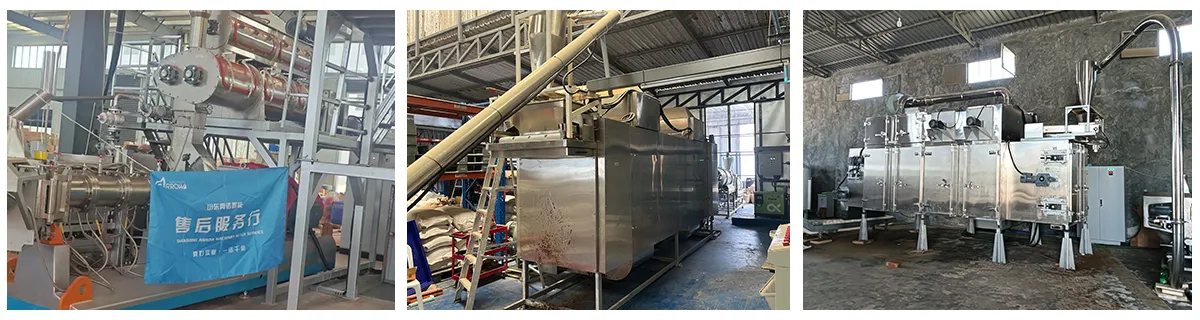

Customer Demonstration
